High-Speed Cutting and Heavy-Duty Applications VT1690 Vertical Machining Center/High Precision/ Multi-Axis Capabilities

Product Detail

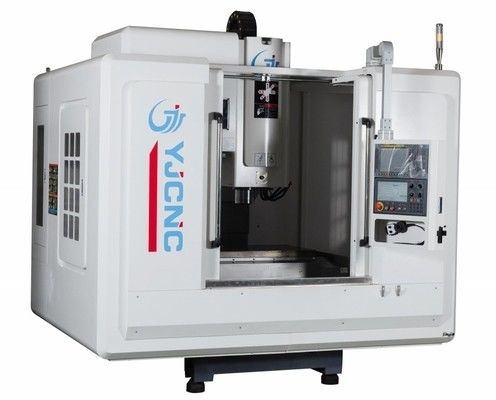

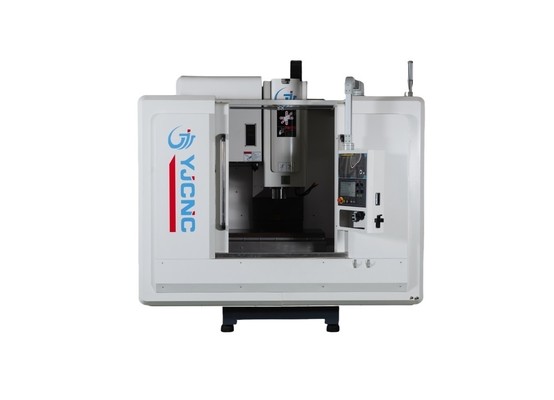

The VT Series Vertical Machining Center is a high-performance, precision CNC machine designed for efficient and accurate machining operations. Known for its rigid structure and thermal stability, the VT series supports high-speed cutting, heavy-duty applications, and enhanced productivity. It features advanced motion control, a high-performance spindle, and an automatic tool changer (ATC) for seamless transitions between tools, making it ideal for complex manufacturing tasks. With its compact footprint and ergonomic design, the VT series is engineered to meet the demanding needs of modern production environments while maintaining ease of use and operational efficiency.

Standard Configuration

Spindle speed BT40 at 8000 rpm, BT50 at 6000 rpm; overload protection for spindle and servo motor; rigid tapping; 24-tool cam-type tool magazine; fully enclosed protective cover; electronic handwheel; automatic lubrication system; spindle tool lubrication system.

Optional Configuration

Spindle speed BT40 at 10000/20000 rpm, BT50 at 8000/10000 rpm; 30/32/40-tool cam-type tool magazine; three-axis grating detection device; tool measurement system; spindle internal cooling; CNC rotary worktable; chain-type chip conveyor; tool length setter and hand-held device; oil-water separator; spindle cooling device; spindle center water outlet.

Highlighted Specs

Model:  VT1690

Table Size (L*W mm):  1700*850

Max Table Load (KG):  1800

X/Y/Z- Axis Travel (mm):  1600/900/850

Rapid Traverse (m/min):  24/24/18

T-Slot (Width/mm):  5-18*125+2-18*100

Max Speed Of Spindle:  5000

CNC System:  Siemens / Mitsubishi/FANUC

Weight (KG):  13500
