Horizontal Machining Center/H 50/1 CNC Maching Center/High-Speed Spindle/Heavy-Duty Construction/High Precision

Product Description:

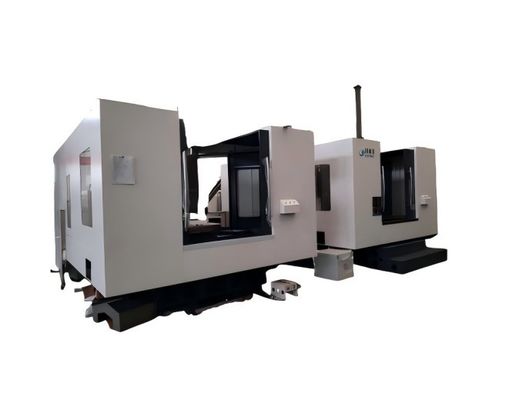

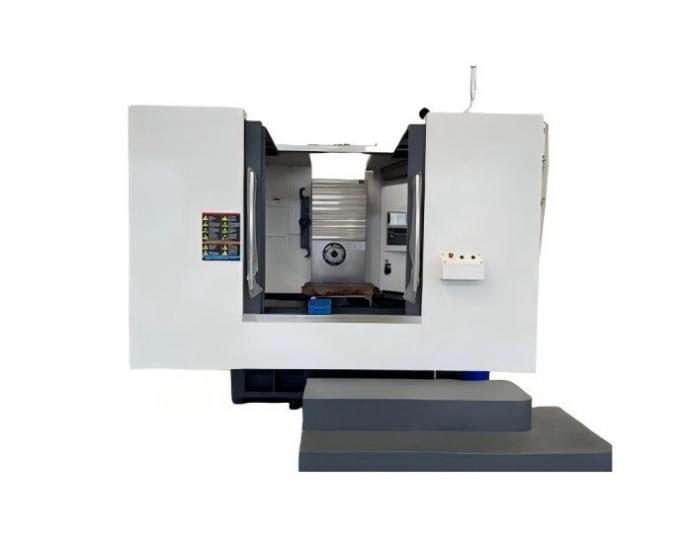

H series CNC horizontal machining center is a kind of processing equipment mainly used for processing boxes, casings and special-shaped parts. It is often used in the production of automobile engine casings, molds and other related parts, and is very suitable for the general machinery industry. Its main basic components are all made of casting HT300 material. Its production process adopts first-class research and development methods such as three-dimensional synchronous design and FEM finite element analysis, and has been improved N times in combination with the use situation.

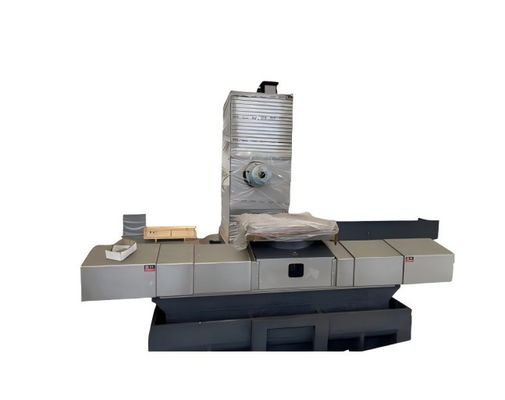

The whole machine adopts high-grade resin sand castings, and the internal stress is eliminated through annealing treatment and natural aging treatment.

Product Features:

• Integrated ultra-wide base, providing the most stable load support capability.
• Z-axis compound rail design ensures machining accuracy and stability.
• Using C3 grade roller screw and pre-stretching to ensure the accuracy of axial movement.
• The perfect structural design of the main milling head and column ensures the maximum
• spindle torque.
• Optional automatic rotary device, one clamping can complete the processing requirements of multiple surfaces.

Highlighted Specs:

Model:  H 50/1

Workbench Size (L*W mm):  500*630

Numbers Of Workbenches:  2

Max Load Of Workbench (KG):  600

T-Slot (Length*Width*Spacing):  24*M16 Screw Hole

X/Y/Z Axis Travel (mm):  740/680/650

Distance From Spindle Center To Worktable:  0-680

Distance From Spindle To Worktable:  130-780

Spindle Speed (rpm):  6000

Fast Moving Speed(mm/min):  25000

Magazine Capacity:  24/30/40/80

Tool Selection Mode:  Random

Max Tool Weight(kg):  18

Max Workpiece(mm):  Ø750

Machine Weight(kg):  10000
