Gantry Machining Center GTM3025/Large Complex Workpieces/Dynamic Positioning/Aerospace, Automotive, Mold Industries

Product Description:

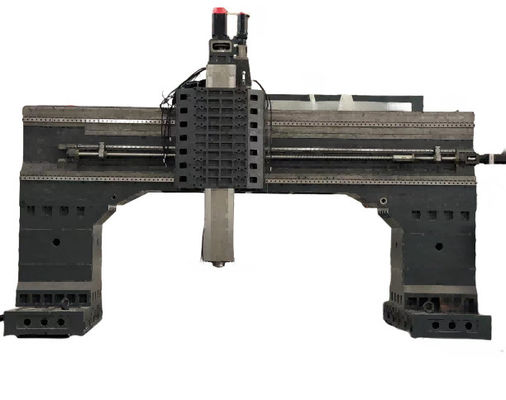

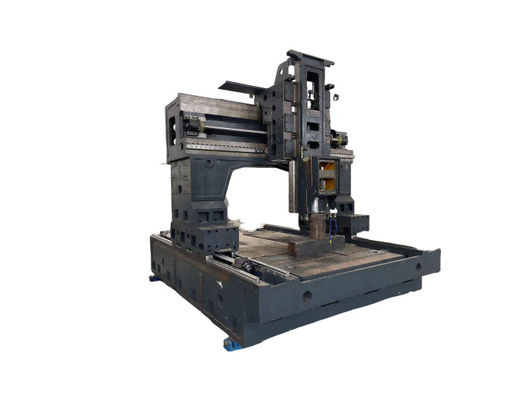

Gantry Machining Center the GTM series is a gantry fixed-beam structure driven by a workbench. The fourth axis is equipped with worm gear transmission, high torque, to ensure good precision quality. The original imported spindle, high torque spindle, six sets of rings spray water and high speed make the cutting surface smoother. The fourth axis swings ±110° along the Y direction, and can process three surfaces

at same time. High-quality AC servo motors, ball screws, linear sliders and electrical accessories are used to ensure that the equipment has good processing accuracy.

Product Features:

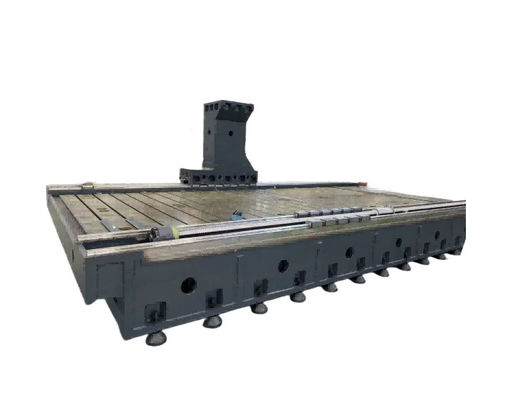

• One-piece full casting structure

• The head magazine and tool magazine can be separated from the column and be independently and firmly on the ground

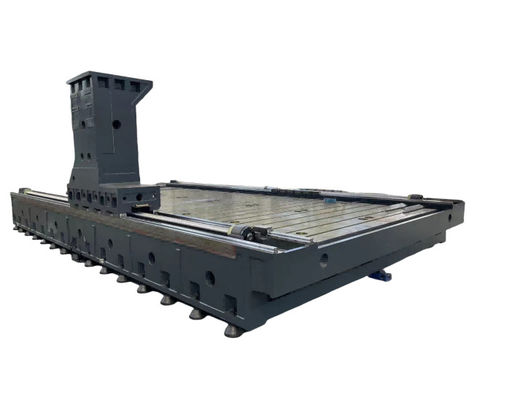

• The column is connected to the side of the base, and the column is independent and stable on the ground

• Extend the Y-axis travel to increase the processing space by 5F

Model:  GTM3025

Working Size(L*W mm):  3200*2000

Max Load Of Workbench(kg):  10000

T-slot(Number*Slot Width*Spacing/mm):  10-28*200

Door Width(mm):  2580

X/Y/Z -Axis Travel (mm):  3500/2900/1100

X/Y/Z -Axis Fast Displacement(mm/min):  1-10000

Max Cutting Feed Speed(mm/min):  1-8000

Number Of Standard Tools(pcs/pcs/kg):  24/30/18

Max Tool Diameter/Length(mm):  120/400

Positioning Accuracy:  0.02

Spindle Motor Power:  22/26

Machine Weight(tons):  42
