Bridge Type Gantry Machining Center DMK3535/Double Column/Heavy-Duty Milling/High Precision/High Load Capacity

Name: Bridge Type Gantry Machining Center DMK3535/Double Column/Heavy-Duty Milling/High Precision/High Load Capacity
Brand: YjCNC
SKU: DMK3535
Rating: 4.9 (148 reviews)

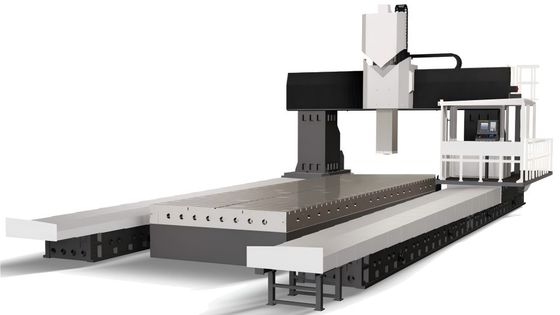

Large Image : Bridge Type Gantry Machining Center DMK3535/Double Column/Heavy-Duty Milling/High Precision/High Load Capacity

Product Details:

Place of Origin:	China
Brand Name:	YjCNC
Model Number:	DMK3535

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Container
Delivery Time:	35-45 Days
Payment Terms:	T/T
Supply Ability:	2-3 Sets Per Month

Contact Now

Detailed Product Description

Bridge Type Gantry Machining Center DMK3535/Double Column/Heavy-Duty Milling/High Precision/High Load Capacity 0

Product Description:

Bridge-type Gantry Machining Center, the DMK series is a machining center for molds and long-axis aviation products, and can best achieve an effective machining stroke of 21 meters. The unique rigidity enables it to meet the high-precision processing requirements of molds and high-speed, high-efficiency heavy-duty processing requirements.

The closed-loop system of the entire CNC machine tool has extremely high dynamic response, which can obtain higher processing

efficiency, processing accuracy and longer precision life, and at the same time provide superior anti-seismic performance. Efficiency

machining offers the perfect solution.

Product Features:

The overpass gantry covers 60% of the fixed beam gantry
According to the requirements of customers' products, the spindle can choose gear structure with high rigidity and high rigidity and electric spindle with high speed and high precision. It has good comprehensive performance, convenient maintenance, high efficiency and low vibration

High-speed nut rotation drive technology and direct drive technology
The machine tool can choose 3 sets of ball screw structure, which has the characteristics of small moment of inertia, less heat generation, high driving efficiency and high dynamic response performance.
The machine tool can be equipped with grating synchronous control
The 4-axis of the machine tool adopts the motor and screw synchronous drive technology to further improve the dynamic response performance of the axis. At the same time, the grating synchronous control technology is adopted to realize high-precision and low-cost control.

Highlighted Specs:

Model: DMK3535

Workbench(L*W/mm): 3500*3180

Max Load Of Workbench(tons): 23

T-slot(Number*Slot Width*Spacing): 16-28*200

Door Width(mm): 3180

X/Y/Z-axis Travel(mm): 3500*3500*900

Distance From Spindle End Face To Work Table(mm): 200-1100

X/Y/Z-axis Fast Displacement(mm/min): 1-10000

Number Of Standard Tools(pcs/pcs/pcs/kg): 24/30/40/18

Positioning Accuracy: 0.018

X,Y Axis Guide Rail(mm): 45/55
