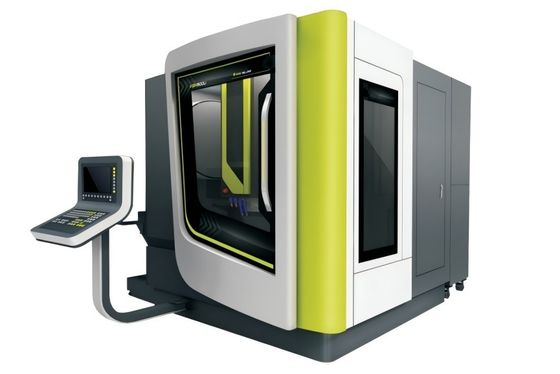

Five Axis Machining Center VSM630/Complex Geometries/Multi-Axis Milling/3D Contouring and Surfacing/CNC Machining Center

Product Detail:

The VSM series is produced and processed with precision technology, all accessories are made of high-quality suppliers, the equipment is stable, and the production and processing are accurate and efficient. It adopts high-rigidity gantry bridge structure, gantry electric drive, high dynamic characteristics, modular design, high speed and high efficiency, and also has good dynamic and static rigidity and stability. It is suitable for almost all light alloys, non-ferrous metals and all non-metals. High-speed five-axis machining of three-dimensional contoured surfaces of materials.

Standard Configuration:

Optional Configuration:

Highlighted Specs:

Model:  VSM-630

X/Y/Z Travel (mm):  60/52/55

B-axis Swing Angle(degree):  -120/+120

C-axis Rotation Angle(degree):  n*360

Table Size(mm):  Ø600

Workbench Bearing 5/3 Axis(kg):  120/210

T-slot(Number*Slot Width*Spacing/mm):   18H7

Spindle Specs:  BT40/HSK-A63

X/Y/Z Fast Moving Speed (m/min):  36/36/36

B/C Fast Forward Speed (rpm):  30/120

X/Y/Z Positioning Accuracy (mm):  0.010

X/Y/Z  Repeated Positioning Accuracy (mm): 0.005

Machine Weight(tons):  9.5
