3 Axis Vertical Machining Center VMC955/High-Speed Machining/Heavy-Duty Cutting/ High Precision/Tool Magazine

Product Detail

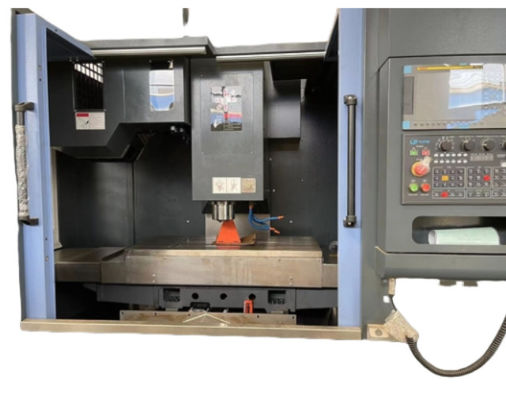

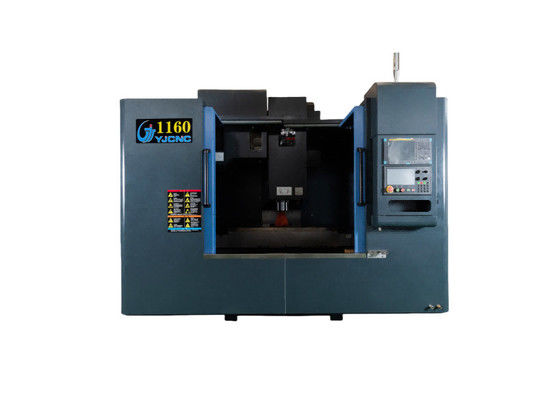

The VMC series features a spacious work area, minimal interference, strong cutting rigidity, high precision, and fast speed, achieving performance metrics of up to 36 m/min and 1g acceleration. The entire machine body is made from high-quality Meehanite cast iron, ensuring stable machining accuracy over time and lasting rigidity. With an ultra-wide base and balanced 10-point horizontal support, the base provides excellent vibration absorption and stability. During rapid movement, the VMC series demonstrates exceptional kinetic accuracy.

Standard Configuration

Spindle speed BT40 at 8000 rpm, BT50 at 6000 rpm; overload protection for spindle and servo motor; rigid tapping; 24-tool cam-type tool magazine; fully enclosed protective cover; electronic handwheel; automatic lubrication system; spindle tool lubrication system.

Optional Configuration

Spindle speed BT40 at 10000/20000 rpm, BT50 at 8000/10000 rpm; 30/32/40-tool cam-type tool magazine; three-axis grating detection device; tool measurement system; spindle internal cooling; CNC rotary worktable; chain-type chip conveyor; tool length setter and hand-held device; oil-water separator; spindle cooling device; spindle center water outlet.

Highlighted Specs

Model:  VMC955

Table Size (L*W mm):  1000*550

Max Table Load (KG):  600

X/Y/Z- Axis Travel (mm):  900/550/600

Rapid Traverse (m/min):  36/36/24

T-Slot (Width/mm):  5-18*100

Max Speed Of  Spindle:  8000(Optional 12000.15000)

CNC System:  Siemens / Mitsubishi/FANUC

Weight (KG):  5500
